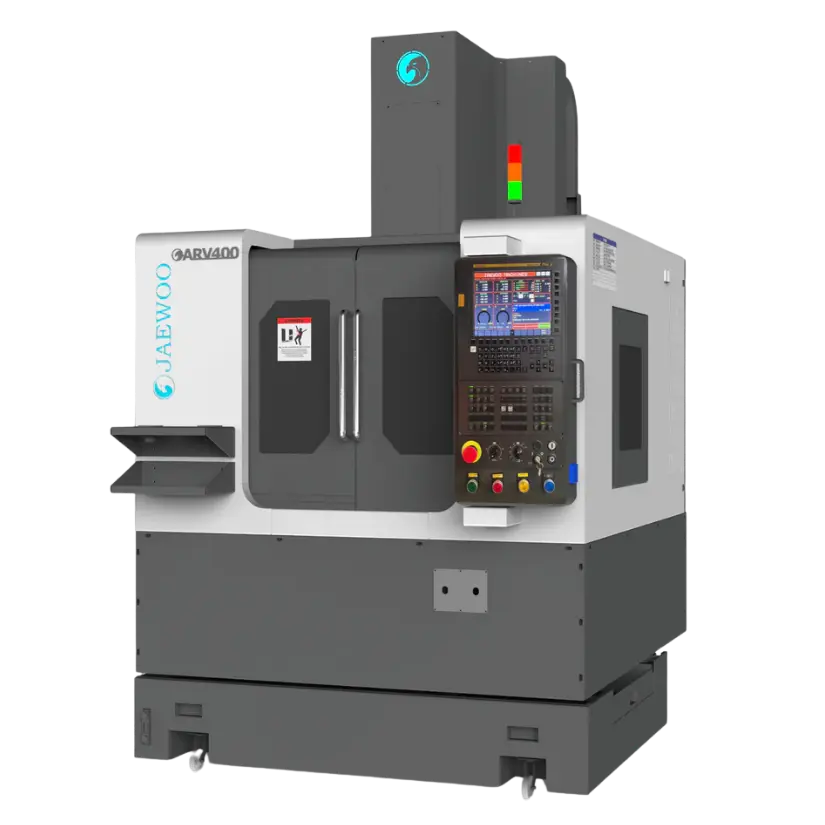

VMC ARV 400
The ARV 400 is a 3 axes CNC vertical machine center that ensures high precision, easy operation and reliable performance. It is best suited for small and medium components. This CNC milling machine has a BT-40 spindle taper and 20 tools auto tool-changer. All the components used are from the best machine tool component manufacturers in the world, allowing it to deliver accuracy throughout its life.
- Equipped with a Fanuc 0iMF + CNC Controller to ensure superior machine performance under all conditions.
- Spindle speed can be customized to deliver up to 10000 RPM for high-speed machining.
- Ideal for high-precision industries including Aerospace, Orthopedic Implants, and Die & Mould.
- Delivers excellent cutting performance on hard metals such as Cast Iron, Steel, and Aluminum.
- Designed with high-grade components to maintain original accuracy throughout a long service life.
- Features a fast chip removal rate and superior coolant delivery systems for difficult machining jobs.
Cutting Performance Data
| Operation | Cutter/Tool Dia | Parameters | Material | Capacity/MRR |
|---|---|---|---|---|
| Milling | 80 mm | 1000 RPM / 1000 mm/Min Feed | EN8 / C.I. | 150 CC/Min (EN8) / 225 CC/Min (C.I.) |
| Drilling | 25 mm (U-Drill) | 1500 RPM / 1500 mm/Min Feed | EN8 | Dia 25 mm |
| Tapping | Coated Tap | 130 RPM | EN8 | M25 x 1.5 |
Standard Features
- Linear Motion Roller Guideways for X, Y, and Z-axis
- Hardened and ground C3 class accuracy ball screws
- Direct coupled servomotors to the ball screws
- Absolute encoders for all the Axes
- Fast cam driven Electro-mechanical Auto Tool Changer
- Electronic Counter balance & Spindle taper Air Blow
- MPG, Levelling pads, and Centralized Lubrication system
- TPM Friendly design with efficient coolant and chip flow
Optional Features
- Chip Conveyor
- Higher RPM Spindle (up to 10000 RPM)
- Coolant Through Spindle (CTS)
- 4th Axis / 5th Axis NC Rotary Table
- Spindle and Table mounted probes
- Panel AC for Electrical Panel
- Oil Skimmer for coolant
| Technical Specifications | |
|---|---|
| Axes Strokes (X/Y/Z) | 400 / 300 / 350 mm |
| Table Size | 600 x 325 mm |
| Max Load on Table | 300 Kg |
| Spindle Taper | BT-40 |
| Spindle Speed | 8000 RPM (Customizable to 10000) |
| Rapid Traverse | 30 M/Min |
| Tool Changer (ATC) | 12 Tools (Umbrella) / 20 Tools (Optional) |
| Positioning Accuracy | ±0.008 mm |
| Repeatability | ±0.004 mm |
| CNC Controller | Fanuc 0iMF / Siemens 828D |
